G12-3A10PA
USYUMO
| Quantity: | |
|---|---|

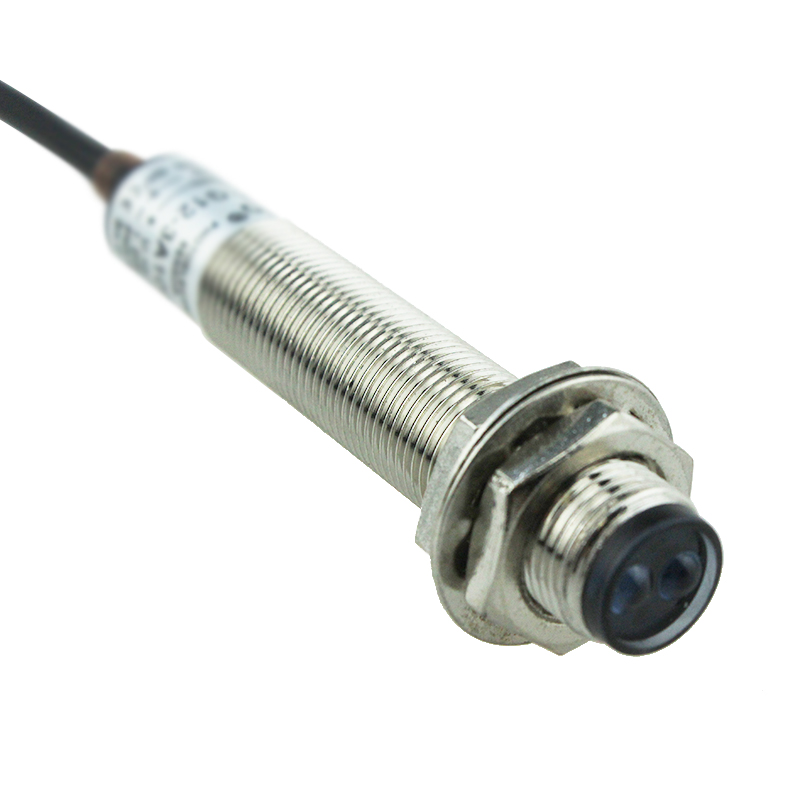

G12-3A10PA 10cm PNP NO M12 Metal Housing Photoelectric Sensor Photo Switch
The working principle of the photoelectric switch is that when the beam ermitted by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.
Diffuse reflection type photoelectric switch integrates the transmitter and the reciver.Light reflected by the photoelectric switch is rflected back to the receiver by the detected object.
| Model | G12-3A10PA | |||
| Detection distance | 10cm | |||
| Supply voltage | 10-30VDC | |||
| DC/SCR/Control output | DC:200mA | |||
| DC/AC Consumption current | DC<15mA | |||
| DC/AC Response time | DC<2ms | |||
| Directional angle | 3°-10° | |||
| Directed object | Transparent or opaque body | |||
| Working environment temperature | -25℃~ +55℃ | |||
| Intensity of illumination of working environment | Sunlight under 10000LX incandescent lamp under 3000LX | |||
| Shell material | Metal | |||
| Protection grade | IP54 | |||
