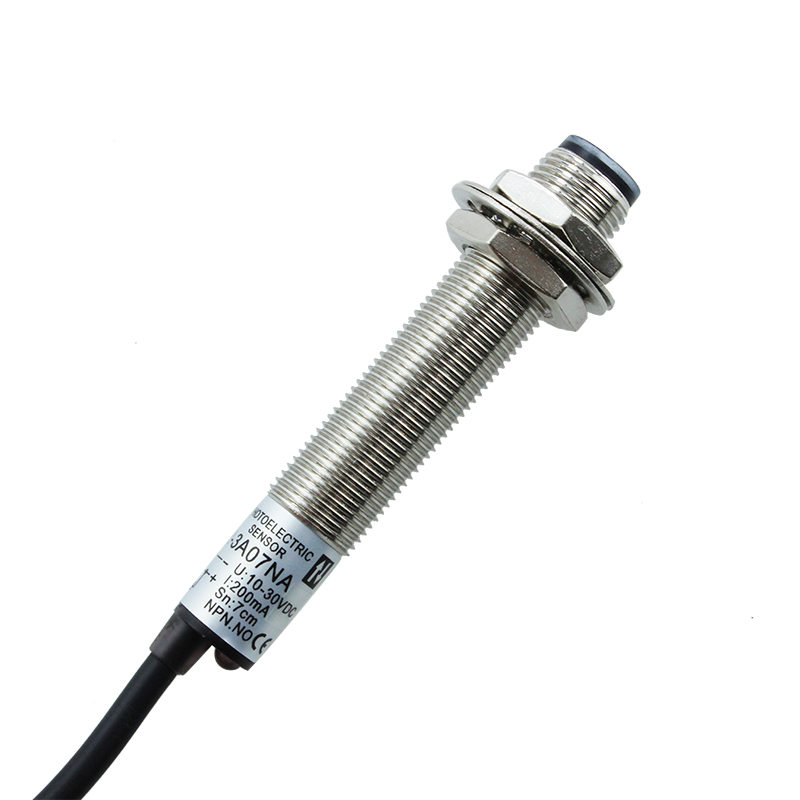

Diffuse Beam Sensor Photocell Switch G12-3A07NA

Photoelectric Sensors detect photo-optical workpieces. USYUMO provides many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors.

  • G12-3A07NA

  • USYUMO

  • G12 .pdf

Availability:
Quantity:

G12-3A07NA Diffuse Beam Sensor Photocell Switch

Principle of photoelectric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Application of photoelectric switch: product counting, forbidden zone intrusion prevention, thick carton detection, etc.

光电传感器选型图

Model G12-3A07NA
Detection distance 7cm
Supply voltage 10-30VDC
DC/SCR/Control output DC:200mA
DC/AC Consumption current DC<15mA
DC/AC Response time DC<2ms
Directional angle 3°-10°
Directed object Transparent   or opaque body
Working environment temperature -25℃~   +55℃
Intensity of illumination of working environment Sunlight   under 10000LX incandescent lamp under 3000LX
Shell material Metal
Protection grade IP54




G12尺寸图
