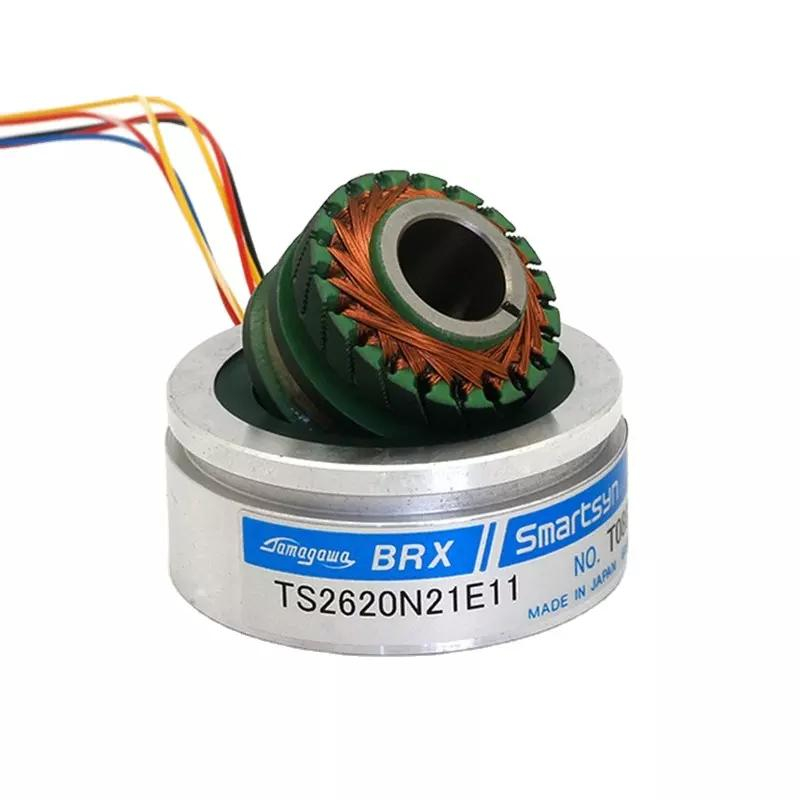

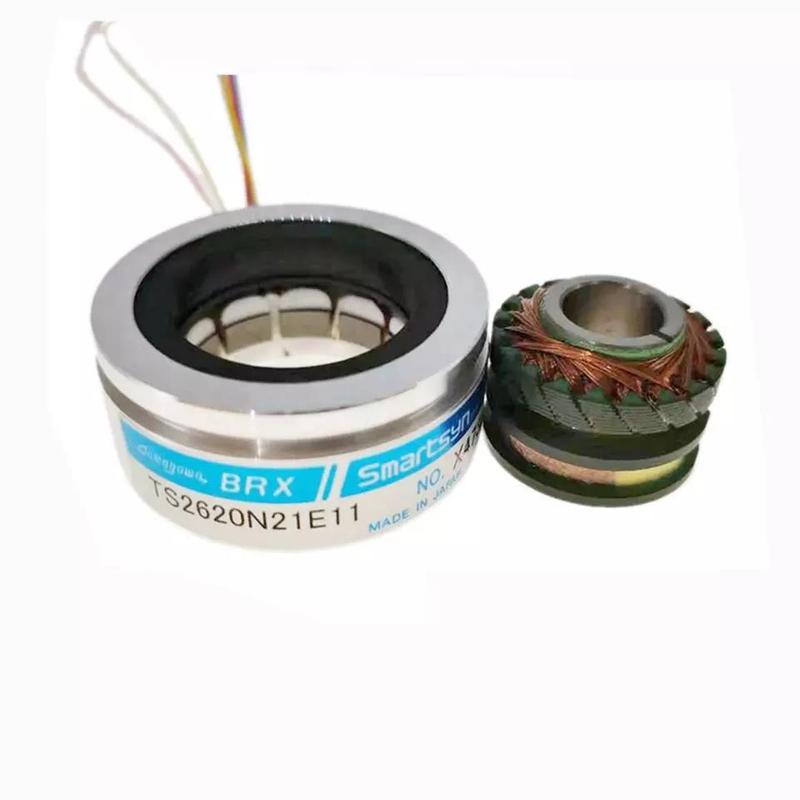

Tamagawa Encoder TS2620N21E11 Original New Tamagawa TS2620N21E11 in Stock

Encoders, at present, have been widely used for factory automations, measurements, office automation devices, medical equipment, aviation and universal fields. From small to high absolution are available to meet all of the requirements.

Model:
TS2620N21E11
Brand:
Tamagawa

SKU:
Availability:

Quantity:



Inquire Add to Basket

Tamagawa Encoder TS2620N21E11 Original New Tamagawa TS2620N21E11 in Stock

Purpose and characteristics of Tamagawa encoder in Japan:

1. Tamagawa Tamagawa encoder has small size, full through-hole, high accuracy, easy installation, low price and high performance design, so Tamagawa encoder has strong anti-interference force.

2. Tamagawa Tamagawa encoder is suitable for precision working environment and automatic industrial control field.

3. Tamagawa Tamagawa encoder is characterized by impact resistance, good vibration resistance, small size, light weight, strong load, etc

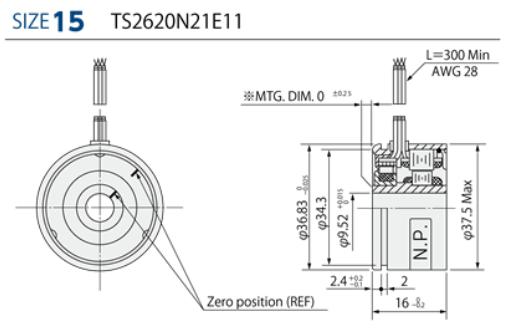

Size		15
Model		TS2620N21E11
Type		1X-BRX
Primary		R1-R2（Rotor)
Input voltage		AC7Vrms 10kHz
Transformation ratio [K]		0.5±5%
Electrical error (Accuracy)		±10'Max
Residual voltage		20mVrms Max
Phase shift		0°REF
Input impedance	Zro	70+j100ΩNom
Output impedance	Zso	180+j300ΩNom
	Zss	175+j275ΩNom
Allowable rotation speed		10,000min-1{rpm}
Operating temperature range		-55℃～+155℃
Dielectric strength		AC500Vrms1min
Insulation resistance		100MΩMin
Mass		0.065kg Max
Output voltage equation		+type
