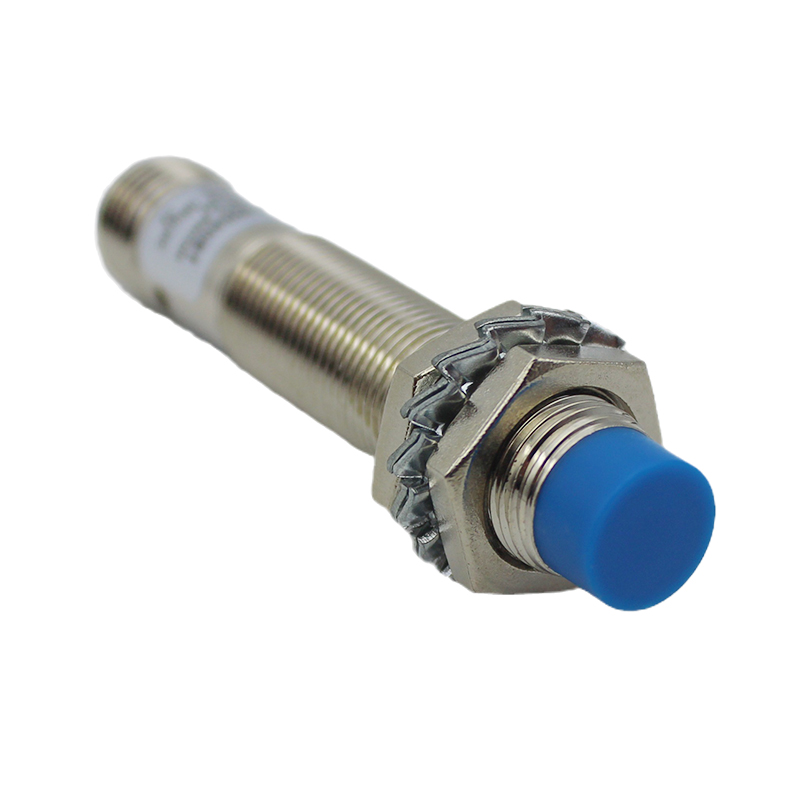

Analog Switch Metal NPN Non-flush Inductive Proximity Sensor LM12-3004NBT

Inductive proximity sensor
Used in harsh working environment, it can withstand all kinds of cutting fluids and has the effects of waterproof and oil proof. Protection grade IP67. Installed in metal, flush or non flush.There are various models, and the power supply voltage can be 6-36v/15-36 DC power supply; 380V, 20 ~ 250V, 90 ~ 250V AC power supply, 20 ~ 250V AC and DC power supply. Solid brass, nickel plated shell / plastic shell, inner shell sealed with process polymer.

  • LM12-3004NBT

  • USYUMO

Availability:
Quantity:

LM12-3004NBT Analog Switch Metal NPN Non-flush Inductive Proximity Sensor

Main Features of proximity switch

1.Compact volume

2.High precision of repeated location

3.Diversified exterior structures

4.Good performance of anti-interference

5.Many output forms

6.High on-off frequency

7.Wide voltage range

8.Dust proof, vibtation proof, water proof and oil proof

9.With short-circuit protection and inverted connecting protection

10.Long service life

接近开关系列选型图

Model LM12-3004NBT
Controloutput DC 200mA
Detection distance 4mm
Protection grade IP67
Working environment temperature -25°C~+70°C
Shell material Metal
Insulation resistance 50MΩ
Repeated precision 0.01
Standred detected object 12x12x1(A3iron)
DC/AC response frequency 400Hz/10Hz


LM12特殊的外形尺寸图
