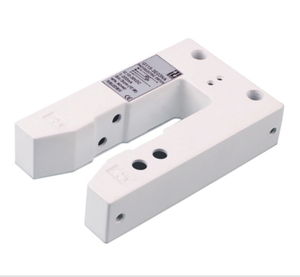

Trough Beam Diffuse reflection ​Retroreflective 3m Proximity Photoelectric Sensor G13

The working principle of the photoelectric switch is that when the beam
emitted by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.
  • G13
  • USYUMO
Availability:
Quantity:

Trough Beam Diffuse reflection  Retroreflective 3m Proximity Photoelectric Sensor G13

Through-beam bype photoelectric switch is designed that via the light beam between opposite-mounted transmitter and receiver, the object passing through these two devices will interrupt the light beam and start the receiver.

Diffuse reflection type photoelectric switch integrates the transmitter and the reciver. Light reflected by the photoelectric switch is reflected back to the receiver by the detected object.

Retroreflective type photoelectric switch also integrates the transmitter  and the receiver, Its difference from other models is that reflecotr is used to relfect light to the photoelectric switch. Though the object between the photoelectric switch and reflector can reflect the light, it is much less  efficient than the reflector so as to cut down reflected light.

Structural category                                                                                  Photoelectric switch

Outward Appearance code

G13

Outward appearance illustration

Diffuse Type

DETECTION DISTANCE

10cm


NPN

NO

G13-3A10NA

DC

NC

G13-3A10NB

10

NO+NC

G13-3A10NC

PNP

NO

G13-3A10PA

30

NC

G13-3A10PB

V

NO+NC

G13-3A10PC

AC 90-250VAC

SCR
Controllable
silicon

NO


NC



Relay output


Retro reflictive

DETECTION DISTANCE

1m


NPN

NO

G13-3B1NA

DC

NC

G13-3B1NB

10

NO+NC

G13-3B1NC

PNP

NO

G13-3B1PA

30

NC

G13-3B1PB

V

NO+NC

G13-3B1PC

AC 90-250VAC

SCR
Controllable
silicon

NO


NC



Relay output


Trough beam

DETECTION DISTANCE

3m


NPN

NO

G13-3C3NA

DC

NC

G13-3C3NB

10

NO+NC

G13-3C3NC

PNP

NO

G13-3C3PA

30

NC

G13-3C3PB

V

NO+NC

G13-3C3PC

AC 90-250VAC

SCR
Controllable
silicon

NO


NC



Relay output


DC/SCR/Relay Control output

DC:200mA 、AC:300mA relay:2A

DC/AC Consumption current

DC<15mA AC<10mA

DC/AC Response time

DC<2ms AC<20ms

Directional angle

3°–10°

Detected object

transparent of opaque body

Working environment temperature

–25℃~55℃

Intensity of illumination of working environment

Sunlight under 10000LX  incandescent lamp under 3000LX

Shell material

Metal

Protection grade

IP54
