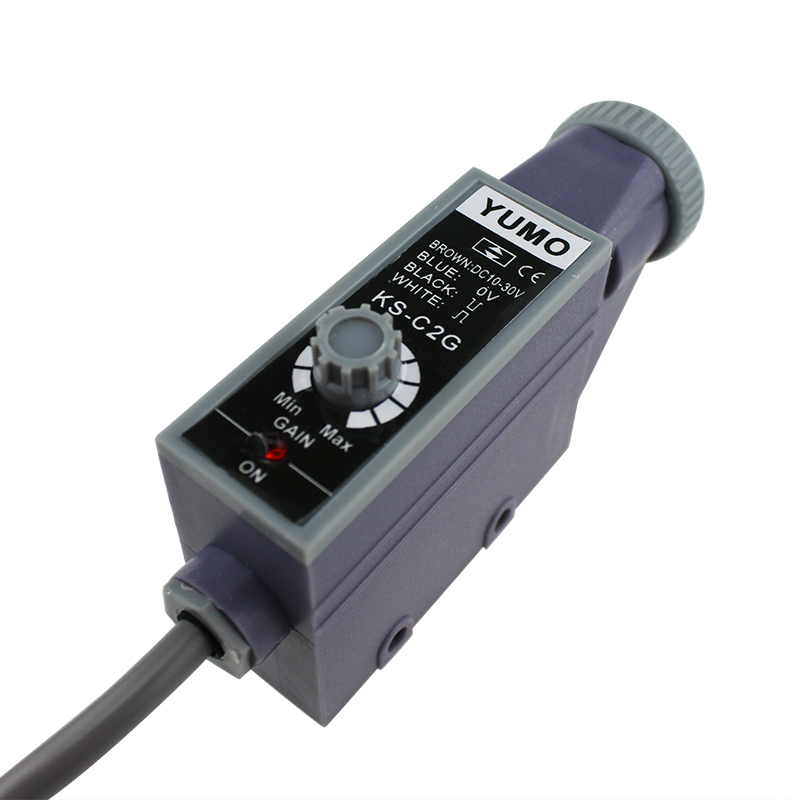

Mark Sensing Color Sensor for Detect Color KS-C2G

Color Code Sensor applies the light emitting and receiving principle. It will send out modulating light, receive the reflecting lights from detected object, and distinguish the color or recognize the existence of objects according the intensity of the receiving signals. It can serve for sensor in the automatic control systems for packing machinery, printing machinery, texture and paper making machinery, etc and be used with other instruments to detect the existence of the object marked with color code, pattern code, line or others. It has the functions of self-locating, recognizing colors, rectifying deviation, pattern checking and countering.

Mark Sensing Color Sensor for Detect Color KS-C2G

KS series color mark sensor will emit light rays to scan the detected surface, and can identify the different color marks through receiving different intensity of light reflected back from different colors on the surface

Coaxial optical design, more adaptable to surfaces of high-reflectance (such as Aluminum foil)

Small light spot, excellent resolution

Short response time of 0.1-1ms, can adapt to control demand of various packaging machines, bagging machines and printing machines

Outstanding internal circuit design that can resist various electromagnetic and optical interference, has stability and no error action

With sensitivity adjustment knob, need no tool to adjust

Supply voltage10-30VDC
Ambient   temperature-20-70°C
Detecting   methodCoaxial reflection
Sensing   distance10mm±2mm
Chromatogram   of lightRed,Green,Blue,White
Response time0.25-1ms
Output current<200mA
Output typeNPN or PNP
Shell materialPlastic
Cable length2m
