Photoelectric sensors detect the existence or distance of objects in a wide range of industrial applications. They usually contain all the required optical and electronic equipment in one unit, and only need power to provide output according to their specifications and target detection standards. Photoelectric sensor can detect a variety of materials and has an extended sensing range.
Structural category Photoelectric switch | ||||
Outward Appearance code | G12 | |||

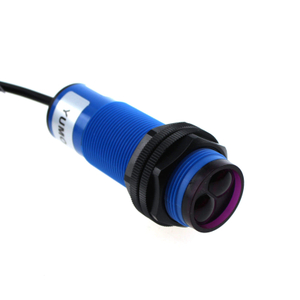

Outward appearance illustration |
| |||
Overall dimensions |
| |||
Diffuse Type | DETECTION DISTANCE | 7cm | ||
NPN | NO | G12-3A07NA | ||
DC | NC | G12-3A07NB | ||
10 | NO+NC | G12-3A07NC | ||
～ | PNP | NO | G12-3A07PA | |
30 | NC | G12-3A07PB | ||
V | NO+NC | G12-3A07PC | ||
AC 90-250VAC | Controllable | NO | ||
NC | ||||
Relay output | ||||
Retro reflictive | DETECTION DISTANCE | 1m | ||
NPN | NO | G12-3B1NA | ||
DC | NC | G12-3B1NB | ||
10 | NO+NC | G12-3B1NC | ||
～ | PNP | NO | G12-3B1PA | |
30 | NC | G12-3B1PB | ||
V | NO+NC | G12-3B1PC | ||
AC 90-250VAC | Controllable | NO | ||
NC | ||||
Relay output | ||||
Trough beam | DETECTION DISTANCE | 3m | ||
NPN | NO | G12-3C3NA | ||
DC | NC | G12-3C3NB | ||
10 | NO+NC | G12-3C3NC | ||
～ | PNP | NO | G12-3C3PA | |
30 | NC | G12-3C3PB | ||
V | NO+NC | G12-3C3PC | ||
AC 90-250VAC | Controllable | NO | ||
NC | ||||
Relay output | ||||
DC/SCR/Relay Control output | DC:200mA | |||
DC/AC Consumption current | DC<15mA | |||
DC/AC Response time | DC<2ms | |||
Directional angle | 3°–10° | |||
Detected object | transparent of opaque body | |||
Working environment temperature | –25℃～55℃ | |||
Intensity of illumination of working environment | Sunlight under 10000LX incandescent lamp under 3000LX | |||
Shell material | Metal | |||
Protection grade | IEC standard IP54 | |||
