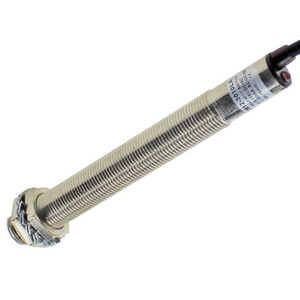

Dual Channel Waterproof Hall Sensor For Position Sensing SM18

SM series Hall sensor is a kind of magnct- sensitive sensor consisting of voltage regulator, Hall voltage generator, differential
amplifier ,trigger and the output pole of collector open circuit.lts input is the magnetic flux density.The output is adigital
voltage signal.


  • SM18
  • USYUMO
  • sm18.pdf
Availability:
Quantity:

Dual Channel Waterproof Hall Sensor For Position Sensing SM18

Features:

Wide mains voltage range

High frequency

Long service life, compact volume, and convenient installation

Directly connect to transistor and logic circuit port like, TTL.MOS

Detection   distance10mm
Mains voltage5~24VDC
Detectable objectPermanent   magnet
Outputlowlevelvoltage200mV
Output high level currentO.1uA
Mains current8mA
ON-OFF frequency320KHz
Working   point magnetic density22mT
Shell materiaMetal
Ambient temperature-25℃-70℃
Protection structurelp67 standard lp67


sm18尺寸图
