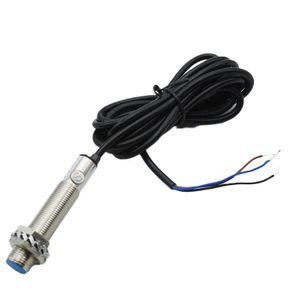

Capacitive Proximity Sensors CM18-3005PA Three Wires Type Sensor

A capacitive sensor is an electronic device that can detect solid or liquid targets without physical contact. To detect these targets, capacitive sensors emit an electrical field from the sensing end of the sensor. Any target that can disrupt this electrical field can be detected by a capacitive sensor.
  • CM18-3005PA
  • USYUMO
  • CM18.pdf
Availability:
Quantity:

Capacitive Proximity Sensor Switch CM18-3005PA Three Wires Type Sensor


A capacitive sensor is an electronic device that can detect solid or liquid targets without physical contact. To detect these targets, capacitive sensors emit an electrical field from the sensing end of the sensor. Any target that can disrupt this electrical field can be detected by a capacitive sensor.

CM选型图

Model CM18-3005PA
Detection   distance 0-5mm
Detectable   object Conductor   and dielectric body
Consumption   current DC<15mA    AC<10mA
Output   current DC:200MA   AC:300MA
Output   voltage drop DC<3V    AC<7V
DC/AC   Response frequency DC:50HZ    AC:10HZ
Working   environment temperature –25℃~70℃
Insulation   resistance 50MΩ
Shell   material Metal/ABS   Resin
Protection   grade IEC   standard IP54


CM18 SIZE
